MSL control panels
The only control panel you will ever need.

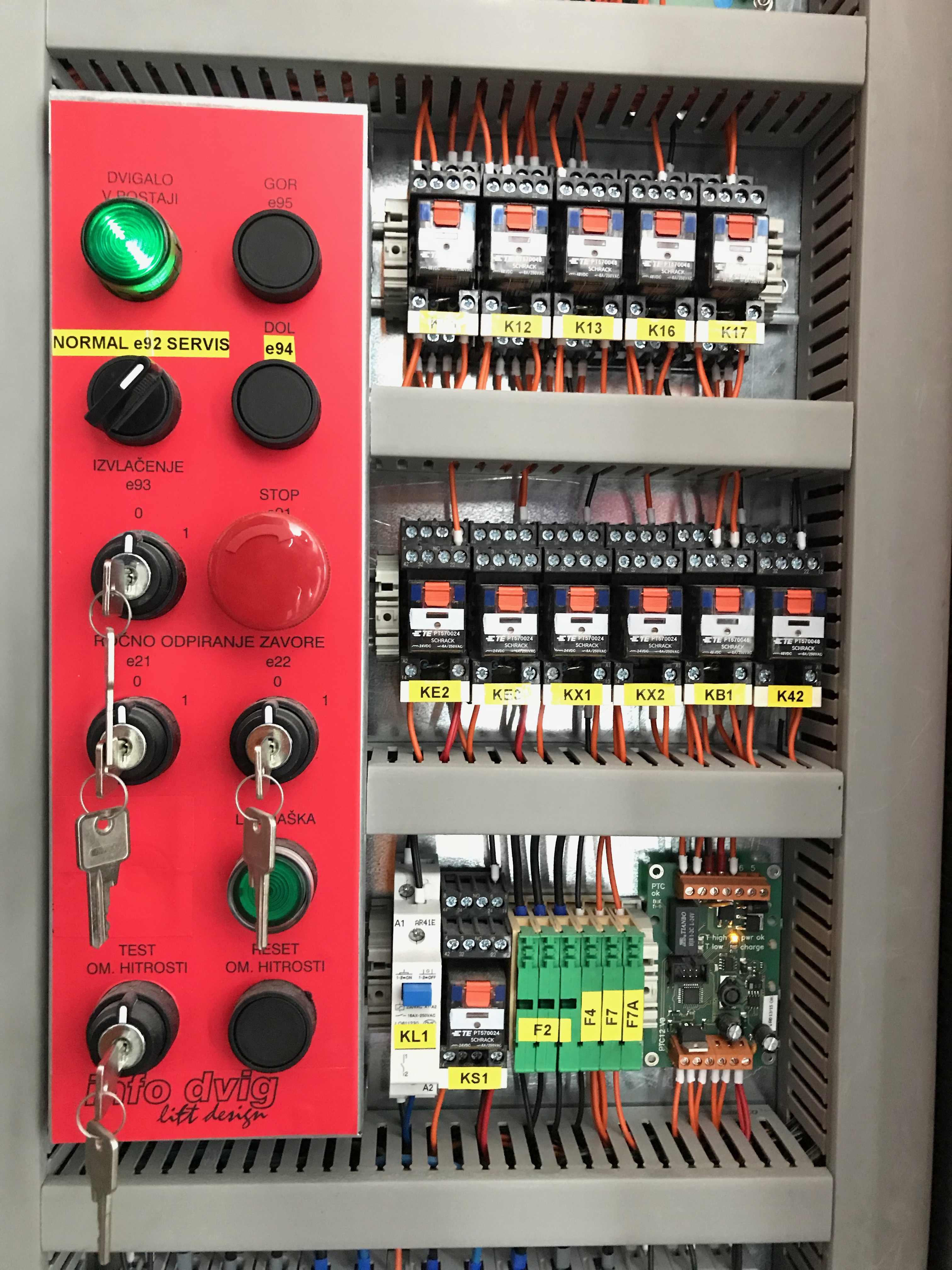

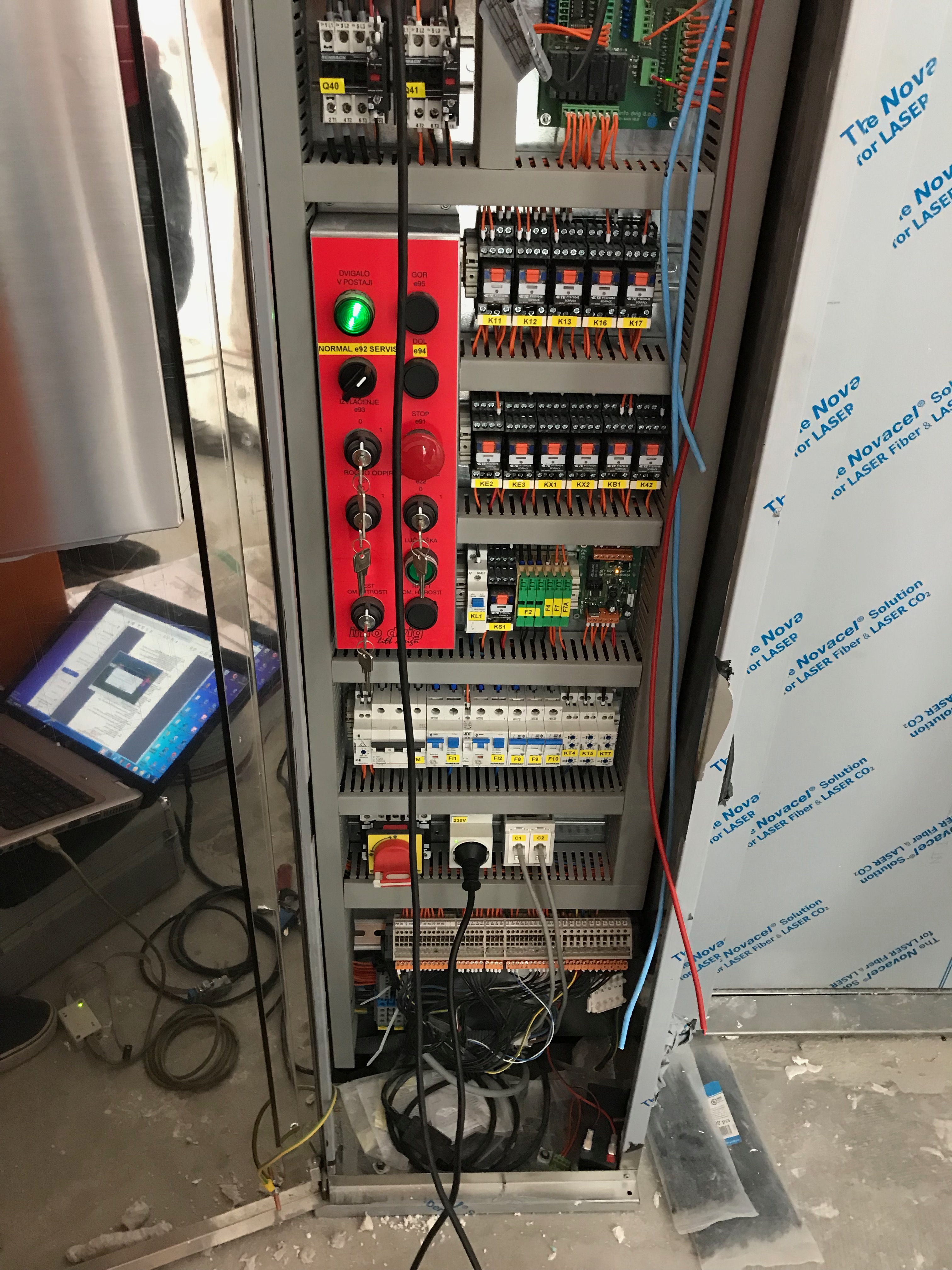

MSL-core is the main controller board, build on top of SEC E-type, which was perfected for the last 20 years to delivering high end results with emense reliability. MSL-core was also designed for door frame installation, if space is tight or if you would like to add that final note to estetics.

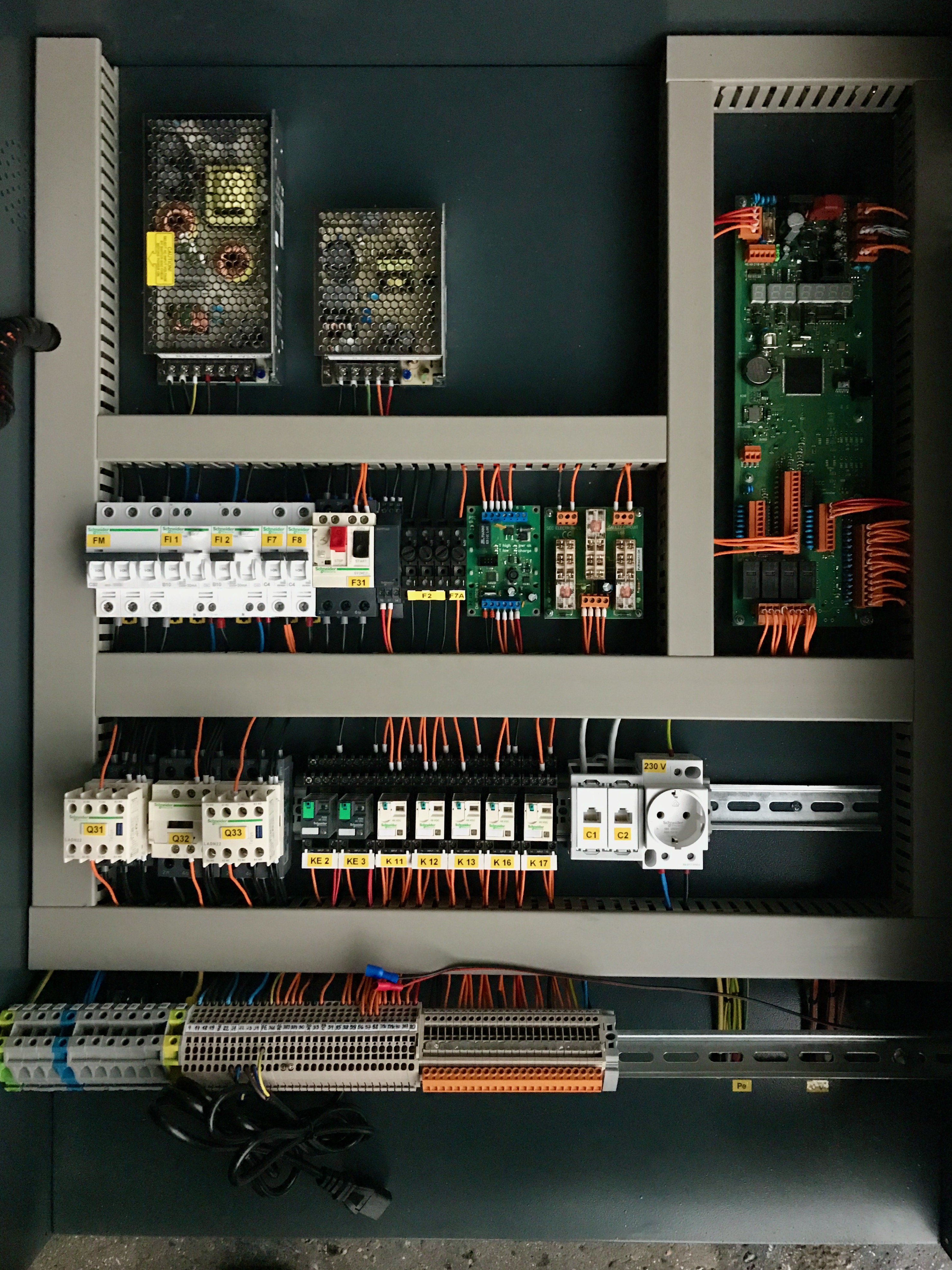

We build our control panels from high quality elements and with great attention to details. The overal design ensures for an easy instalation without the need to change parameters.
All control panels undergo fully quality testing before packaging to ensure hasle free instalation for our clients.
ONLINE CONFIGURATORMSL-core
Board Properties
Design to fulfill every request and more.

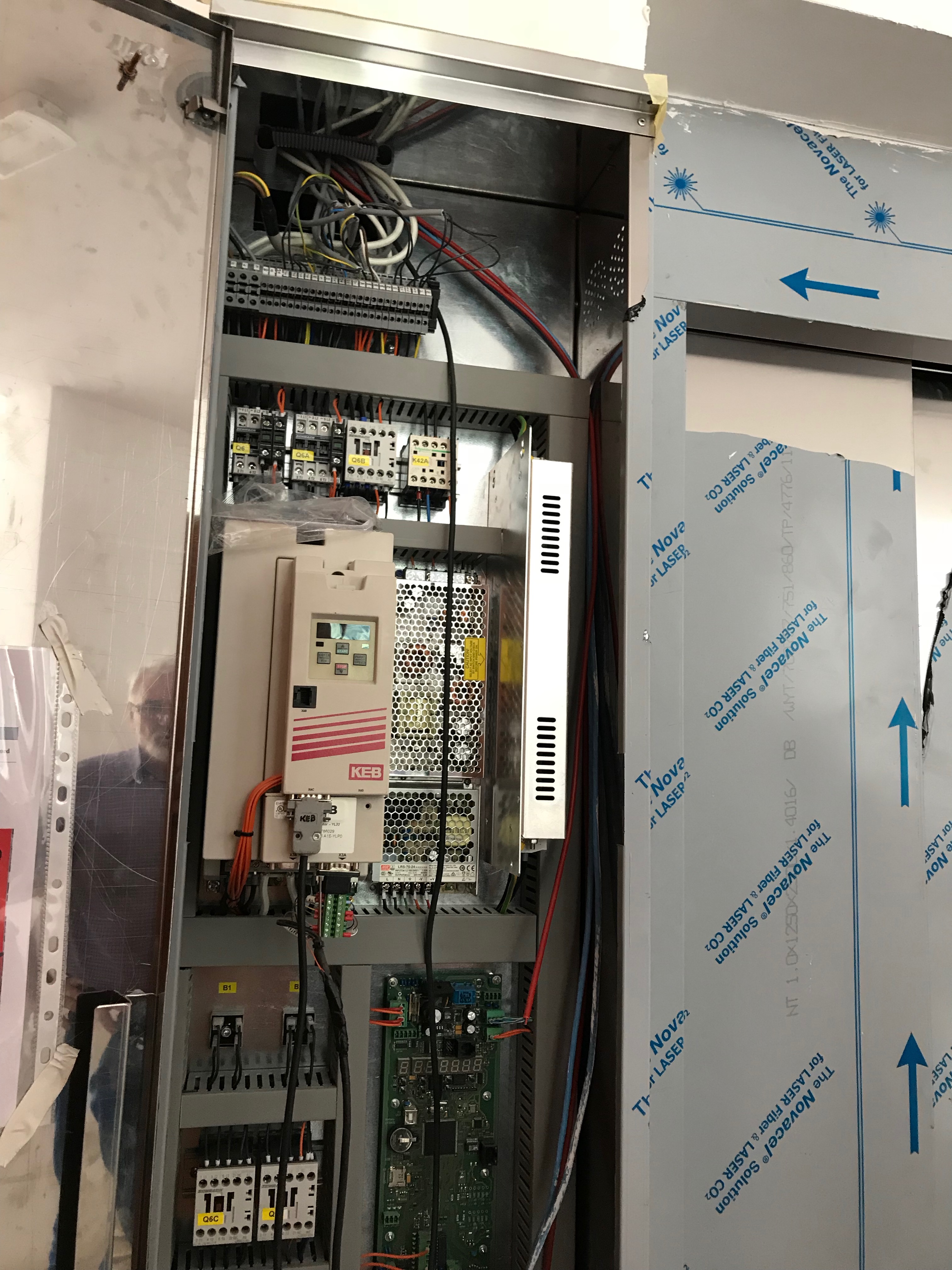

- Suitable for 120mm MRL cabinets
- Integrated programmer
- Micro SD card socket for software update
and parameter backup - Ethernet socket
- Pugable screw terminals
- Socket for external programming console
MSL-core
Software Capabilities
Advanced system software supports all lift types with modern and advanced solutions.
- Up to 48 up and down calls
- Up to 8 lifts in multiplex
- Serial communication for cabin and LOPs
- Filling and Emptiing timers
- mart AI for optimum relatime parking
station adjustment - Emergency bead service for hospitals
- Two door operation
- And more...
MSL-core
Supported Lift Types
Controller supports a wide range of hydraulic and traction lift types.
- Traction two speed
- MR Traction VVVF
- MRL Traction VVVF
- Hydraulic with 1,2,3 or 4 valves
- Hydraulic with regulated valve block
